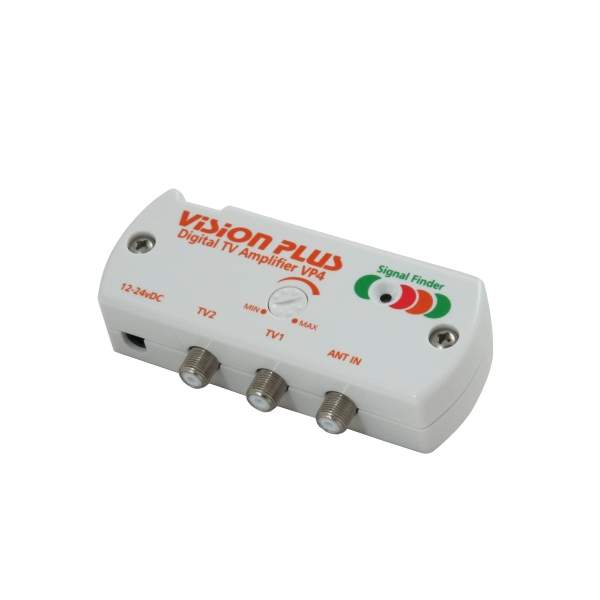

The Vision Plus VP4 Digital Amplifier With Signal Finder
Fully wideband for terrestrial TV transmissions and is designed to be used with Vision Plus STATUS (with ORANGE logos only) and IMAGE directional antennas.
This unique product also incorporates a dedicated Signal Finder to locate your nearest / strongest TV signal transmitters.
This powerful amplifier with high gain and low noise capabilities will ensure improved performance, especially in those areas that suffer with poor reception.
Specification:
•On/Off switch
•Variable gain control
•2 TV outputs
•Frequency Range UHF 470-862 MHz
•Amplifier Gain Max 15dB
•Gain Adjustment 0 to ≃ 15 dB
•Flatness +1.5dB
•Noise Figure 2.2dB
•Output Impedance 75ohms
•Signal Handling 80 dBμV
•Power Supply 10.8-28v DC
•Power Consumption 85 mA
•Dimensions 115wx46hx28d (mm)
The amplifier requires a 12-24 volt power supply from a fused auxiliary outlet fed from the battery. If wiring direct to a battery we recommend an in line fuse (max 5A) on the positive wire. If unsure please consult with a qualified installer.
EU Declaration of Conformity
Grade UK Ltd T/A Vision Plus hereby declares that the radio equipment type VP2, VP2+2, VP3, VP4 and VP5 are in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following link:Â Â EU Declaration of Conformity
PLEASE NOTE: We no longer supply or stock the alternative 12v DC mains adapter.
Product Code 09-6005/VP4
